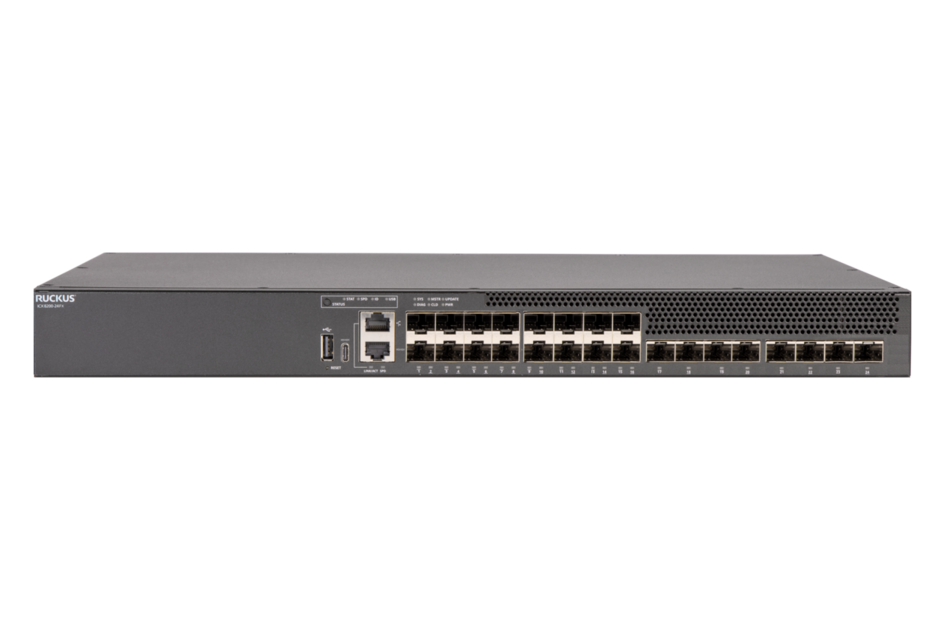

RUCKUS ICX 8200-24FX
High-Performance Fiber Access Switch
Overview:
The RUCKUS ICX 8200-24FX is a high-performance fiber-based stackable access switch designed for demanding campus and data center networks. It features 16× 1/10GbE SFP+ downlink ports and 8× 1/10/25GbE SFP28 uplink/stacking ports, offering exceptional throughput and scalability.
Supporting advanced Layer 2/3 features, VXLAN, and high availability options, this switch ensures reliable, future-proof connectivity for enterprise networks.
Premium Features:
- 16× 1/10GbE SFP+ fiber downlink ports
- 8× 1/10/25GbE SFP28 uplink/stacking ports
- Advanced Layer 2/3 routing: OSPF, BGP, VRRP, VRF, PIM, PBR
- VXLAN support for segmentation and data privacy
- Stackable up to 12 switches, max 10 km distance
- Redundant hot-swappable power and fan modules
- Management via RUCKUS SmartZone, One, Unleashed, CLI, SNMPv3, sFlow
- High availability with ISSU, VSRP, and hitless failover
- Ideal for high-density campus and data center leaf deployments
Specifications:
| RUCKUS ICX 8200-24FX Overview | |
|---|---|
| Switching Capacity | 720 Gbps |
| Forwarding Capacity | 533 Mpps |
| Downlink Ports | 16× 1/10GbE SFP+ |
| Uplink / Stacking Ports | 8× 1/10/25GbE SFP28 |
| Stacking Max | 12 switches per stack, up to 10 km |
| Redundant PSU / Fans | Optional dual hot-swappable |
| PoE Budget | Not applicable (fiber model) |
| Management | RUCKUS SmartZone, One, Unleashed, CLI, SNMPv3, sFlow |
| Deployment | Campus Access, Data Center Leaf |
ICX 8200 Series Model Comparison:
| Model | Switching Capacity | Forwarding Capacity | Downlink Ports | Uplink/Stacking Ports | Stacking Max | Redundant PSU/Fans |
|---|---|---|---|---|---|---|
| ICX 8200-24F | 248 Gbps | 184 Mpps | 24× 1GbE SFP | 4× 1/10/25GbE SFP28 | 12 switches | Optional |
| ICX 8200-48F | 296 Gbps | 219 Mpps | 48× 1GbE SFP | 4× 1/10/25GbE SFP28 | 12 switches | Optional |
| ICX 8200-24FX | 720 Gbps | 533 Mpps | 16× 1/10GbE SFP+ | 8× 1/10/25GbE SFP28 | 12 switches | Optional |
Documentation:
Download the RUCKUS ICX 8200-24FX Datasheet
