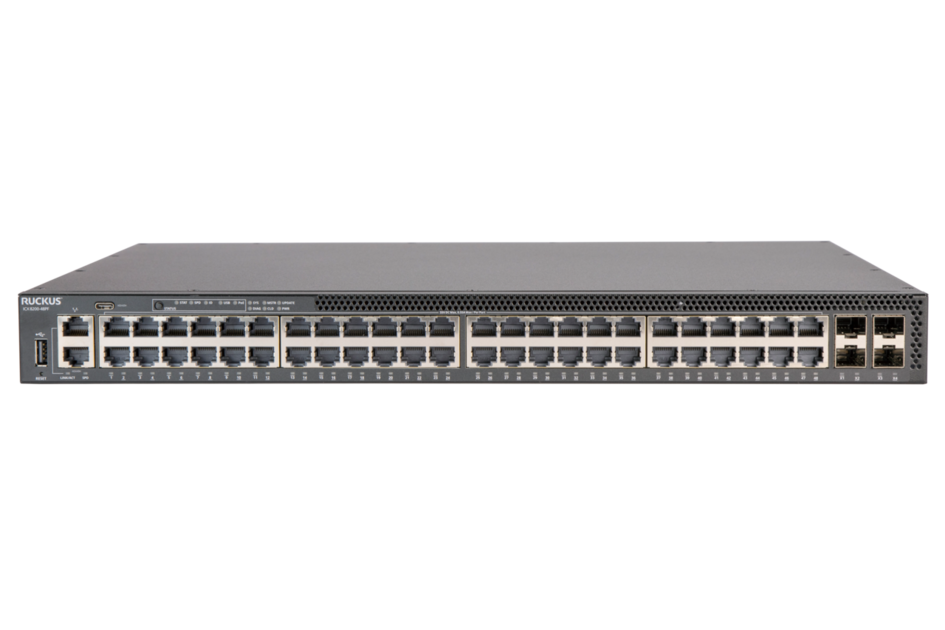

RUCKUS ICX 8200-48PF
48-Port 1G PoE Access Switch
Overview:
The RUCKUS ICX 8200-48PF is a high-performance enterprise access switch designed for modern campus networks that require high-density Gigabit connectivity and high-power PoE support.
The switch provides 48 Gigabit Ethernet ports with Power over Ethernet to support wireless access points, IP phones, surveillance cameras, and IoT devices while delivering reliable enterprise switching performance.
Built on the RUCKUS ICX switching platform, the ICX 8200-48PF supports high-speed uplinks, advanced Layer 3 routing, and scalable stacking. It also integrates with RUCKUS network management solutions such as RUCKUS One and SmartZone for centralized network visibility and management.
Features:
- 48 × 1GbE RJ-45 PoE ports
- 4 × 1GbE SFP fiber uplink ports
- 4 × 10GbE SFP+ uplink ports
- 4 × 25GbE SFP28 high-speed uplinks
- 296 Gbps switching capacity
- 740 W PoE power budget
- Supports stacking up to 12 switches
- 1200 Gbps aggregate stacking bandwidth
- Layer 3 routing support including Static, RIP, and OSPF
- sFlow traffic monitoring
- OpenFlow with Hybrid Port Mode
- VRF support for network segmentation
- VXLAN support for network virtualization
- Energy Efficient Ethernet (EEE)
Specifications
| Table 1. Performance and Capacities of RUCKUS ICX 8200-48PF | |
|---|---|
| Switching Capacity | 296 Gb/s |
| 1 GbE RJ45 Ports | 48 |
| 1 GbE SFP Ports | 4 |
| 10 GbE SFP+ Ports | 4 |
| 25 GbE SFP28 Ports | 4 |
| PoE Power Budget | 740 W |
| PoE / PoE+ | Yes |
| Maximum Stack Size | 12 Switches |
| Aggregate Stack Bandwidth | 1200 Gb/s |
| Layer 3 Routing | Static, RIP, OSPF |
| sFlow | Yes |
| OpenFlow Hybrid Mode | Yes |
| VRF | Yes |
| VXLAN | Yes |
| Energy Efficient Ethernet (EEE) | Yes |
| MACsec | No |
| BGP | No |
| Redundant Power Option | No |
Documentation:
Download the RUCKUS ICX 8200 Series Data Sheet
RUCKUS ICX 8200 Series Switch
RUCKUS ICX 8200-48PF
48-Port Gigabit PoE Access Switch
Enterprise access switch with 740W PoE budget, high-speed 25GbE uplinks, Layer 3 routing, and scalable stacking for campus networks.
