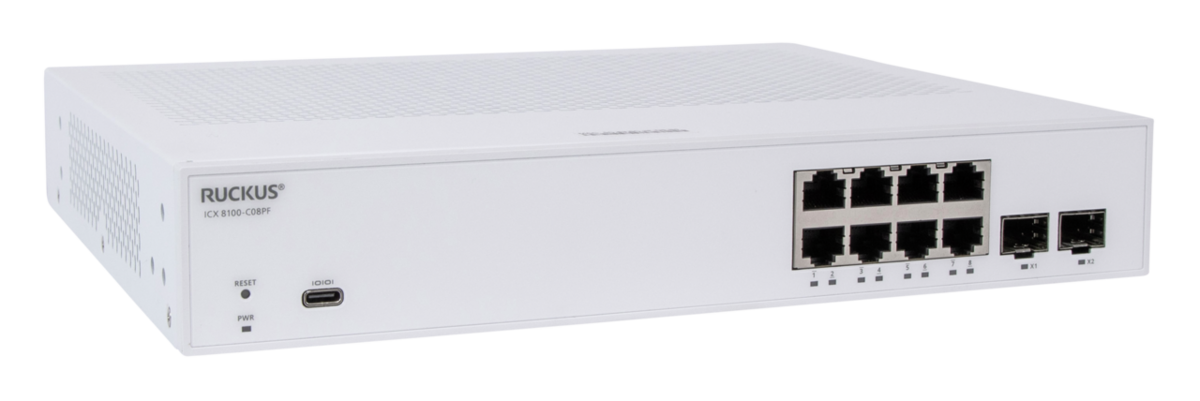

RUCKUS ICX 8100-C08PF
8-Port Gigabit PoE+ Compact Switch
Overview:
The RUCKUS ICX 8100-C08PF is a compact 8-port Gigabit PoE+ switch designed for small branch offices, classrooms, or compact enterprise deployments.
With 8 Gigabit Ethernet PoE+ ports, it can power access points, IP cameras, and VoIP phones while providing reliable connectivity and simple network management.
The switch supports Layer 2 features and flexible management via RUCKUS One cloud, SmartZone controllers, CLI, SNMP, or web GUI for easy deployment in small and medium networks.
Features:
- 8 × 10/100/1000 Mbps Gigabit Ethernet PoE+ access ports
- PoE power budget up to 120 W
- Maximum 30 W per port PoE output
- Switching capacity up to 20 Gb/s
- Forwarding performance up to 14.8 Mpps
- Energy Efficient Ethernet (IEEE 802.3az)
- sFlow traffic monitoring
- Support for jumbo frames up to 9,216 bytes
- Flexible management via RUCKUS One, SmartZone, CLI, SNMP, and Web GUI
Specifications:
| RUCKUS ICX 8100-C08PF Specifications | |
|---|---|
| Switching Capacity | 20 Gb/s |
| Forwarding Capacity | 14.8 Mpps |
| 10/100/1000 Mbps RJ-45 Ports | 8 |
| PoE Support | PoE+ |
| PoE Power Budget | 120 W |
| Maximum PoE Output per Port | 30 W |
| Uplink Ports | 2 × 1 GbE SFP |
| Energy Efficient Ethernet | Yes (IEEE 802.3az) |
| sFlow Monitoring | Yes |
| Maximum MAC Addresses | 16K |
| Maximum VLANs | 1024 |
| Maximum Jumbo Frame Size | 9,216 bytes |
| Management Options | RUCKUS One, SmartZone, CLI, Web GUI |
| Operating Temperature | 0°C to 45°C |
Documentation:
Download the RUCKUS ICX 8100-C08PF Data Sheet
Compact enterprise-grade Gigabit Ethernet PoE+ switch ideal for small offices, branch locations, and campus deployments.
