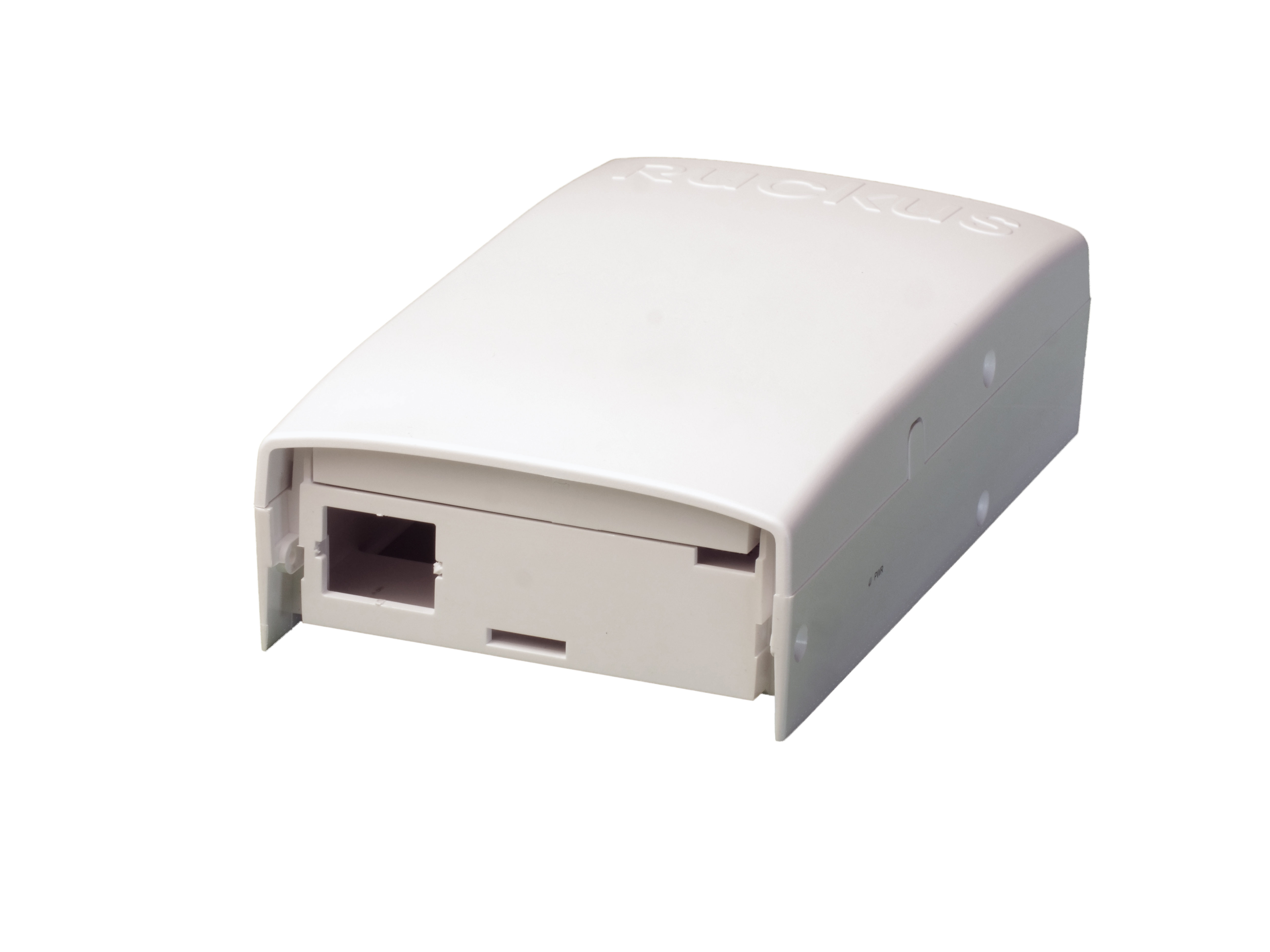

RUCKUS Fiber Backpack
Fiber-to-Ethernet Media Converter Accessory for H510 Wall-plate AP
Overview:
The RUCKUS Fiber Backpack is an optional, field-installable Fiber-to-Ethernet Media Converter accessory that provides a fiber Optical Network Terminal (ONT) backhaul interface for the H510 Wall-plate AP — RUCKUS's leading hospitality access point.
In hospitality and MDU deployments today, fiber-based installations typically require a separate ONT to connect APs deployed in hotel rooms to fiber media. Most ONTs do not support both active and passive fiber SFP modules, and installing an ONT alongside an AP creates wire clutter and aesthetic challenges in guest-facing spaces.
The Fiber Backpack solves this by attaching directly and unnoticeably to the H510, converting 10/100/1000 Mbps Ethernet from the AP to fiber via an SFP cage. It supports both PON and Active Fiber SFP modules, and provides power to the H510 AP by converting DC input power to PoE out — eliminating the need for a separate power injector.
Designed for fiber-ready hotels and MDU environments, the Fiber Backpack simplifies Wi-Fi deployments, reduces cabling complexity, and maintains room aesthetics without compromising connectivity.
Features:
- Field-installable fiber ONT backhaul accessory for the H510 Wall-plate AP
- Converts 10/100/1000 Mbps Ethernet from the AP to fiber via SFP cage
- Supports both PON and Active Fiber SFP modules
- Provides power to H510 AP by converting DC input to PoE out
- Attaches unnoticeably to the H510 — no visible wire clutter
- 1 Gbps Ethernet port with NBASE-X SFP fiber interface
- IEEE 802.3ah-2005 compliance for PON and 1000Base-LX
- TS-1000 compliance for 1000Base-LX
- External 48V DC power supply input (42.5V – 57V range)
- Max power consumption of 1W (without SFP module)
- Compact and lightweight — 0.132 kg
- RoHS compliant hazardous materials
- Operating temperature 0°C to 40°C, humidity up to 95% non-condensing
- Compatible with optional NBASE-X SFP optics (SMF and MMF)
- Installation kit and cable cover accessories available separately
Specifications:
| RUCKUS Fiber Backpack — Physical Characteristics | |
|---|---|
| Physical Size (without cover) | 8.95 × 14.67 × 2.45 cm |
| Physical Size (with cover) | 8.95 × 14.67 × 4.18 cm |
| Weight | 0.132 kg (0.29 lb) |
| Ethernet Port | 1 × 1 Gbps |
| Fiber Interface | SFP, 1 Gbps, NBASE-X |
| Operating Temperature | 0°C to 40°C |
| Humidity | Up to 95% non-condensing |
| Power | |
| Power Supply | External 48V DC Power Supply (902-0170-XXYY) |
| DC Input Voltage Range | 42.5V to 57V |
| Wire Gauge | 12 to 22 AWG |
| Max Power Consumption | 1W (without SFP module) |
| Management & Standards Compliance | |
| PON Standard | IEEE 802.3ah-2005 |
| 1000Base-LX Standard | IEEE 802.3ah-2005 · TS-1000 |
| Certifications | |
| EMC | EN 55032 Level 2/3 · EN 55024 |
| Railway | EN 50121-1 · EN 50121-4 |
| Medical | EN 60601-1-2 |
| Safety | IEC 60950-1 · IEC 62368-1 |
| Shock & Vibration | IEC 61373 |
| Transportation | EN 50155 · ISTA 2A |
| Hazardous Materials | RoHS |
| Recycle Design | WEEE |
Documentation:
Download the RUCKUS Fiber Backpack Data Sheet
Field-installable fiber ONT backhaul accessory for the H510 Wall-plate AP. Supports PON and Active Fiber SFP modules. Provides PoE power to attached H510.
