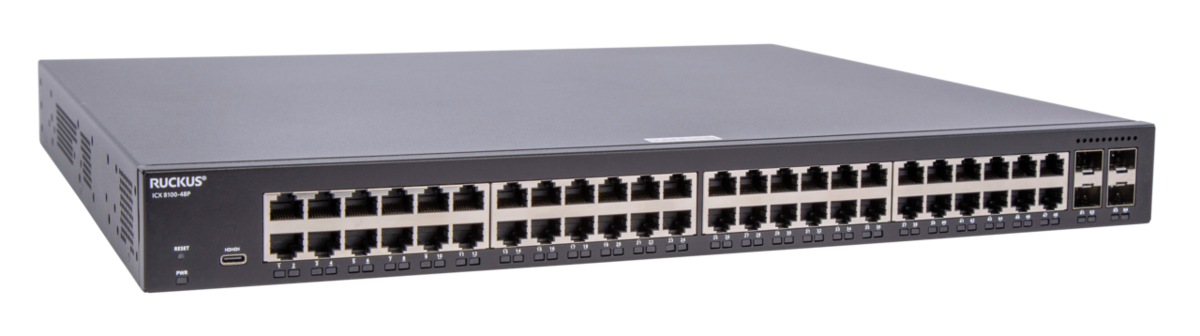

RUCKUS ICX 8100-48P
48-Port Gigabit PoE+ Enterprise Access Switch
Overview:
The RUCKUS ICX 8100-48P is a high-performance enterprise access switch delivering reliable Gigabit connectivity with integrated PoE+ capabilities for powering network devices such as wireless access points, IP cameras, VoIP phones, and IoT infrastructure.
With 48 Gigabit Ethernet PoE+ ports and four 1GbE SFP uplink ports with optional 10GbE SFP+ uplinks, the ICX 8100-48P provides scalable connectivity between edge devices and the core network.
The switch supports flexible management through RUCKUS One AI-driven cloud management, SmartZone controllers, CLI, and a web-based GUI, allowing organizations to manage networks according to their operational preferences.
Designed for enterprise access deployments including campuses, hospitality venues, schools, and multi-tenant residential environments, the ICX 8100-48P combines performance, reliability, and simplified network operations.
Features:
- 48 × 10/100/1000 Mbps Gigabit Ethernet PoE+ access ports
- Up to 370 W total PoE power budget
- 4 × 1GbE SFP uplink ports
- Optional 4 × 10GbE SFP+ uplinks (-X models)
- Switching capacity up to 180 Gb/s
- Forwarding performance up to 134 Mpps
- Energy Efficient Ethernet (IEEE 802.3az)
- Advanced Layer 2 switching capabilities
- sFlow traffic monitoring and analytics
- Enterprise-grade security including 802.1X authentication
- Supports RUCKUS One cloud management
- Management via SmartZone controller, CLI, or Web GUI
- Ideal for powering wireless access points, VoIP phones, and IoT devices
Specifications:
| RUCKUS ICX 8100-48P Specifications | |
|---|---|
| Switching Capacity maximum | 180 Gb/s |
| Forwarding Capacity | 134 Mpps |
| 10/100/1000 Mbps RJ-45 Ports | 48 |
| PoE Support | PoE+ |
| PoE Power Budget | 370 W |
| Uplink Ports | 4 × 1GbE SFP (optional 4 × 10GbE SFP+) |
| Stacking | Not supported |
| Layer 3 Routing | Not supported |
| Energy Efficient Ethernet | Yes (IEEE 802.3az) |
| sFlow Monitoring | Yes |
| Maximum MAC Addresses | 32K |
| Maximum VLANs | 4095 |
| Maximum Jumbo Frame Size | 9,216 bytes |
| Management Options | RUCKUS One, SmartZone, CLI, Web GUI |
| Console Port | USB Type-C |
| Operating Temperature | 0°C to 45°C |
| Dimensions (H × W × D) | 4.40 × 44.00 × 37.00 cm |
| Weight | Approx. 5 kg |
Documentation:
Download the RUCKUS ICX 8100 Series Data Sheet
Enterprise-grade Gigabit Ethernet PoE+ switch designed for powering wireless access points, IP phones, and network devices while delivering reliable high-performance connectivity.
