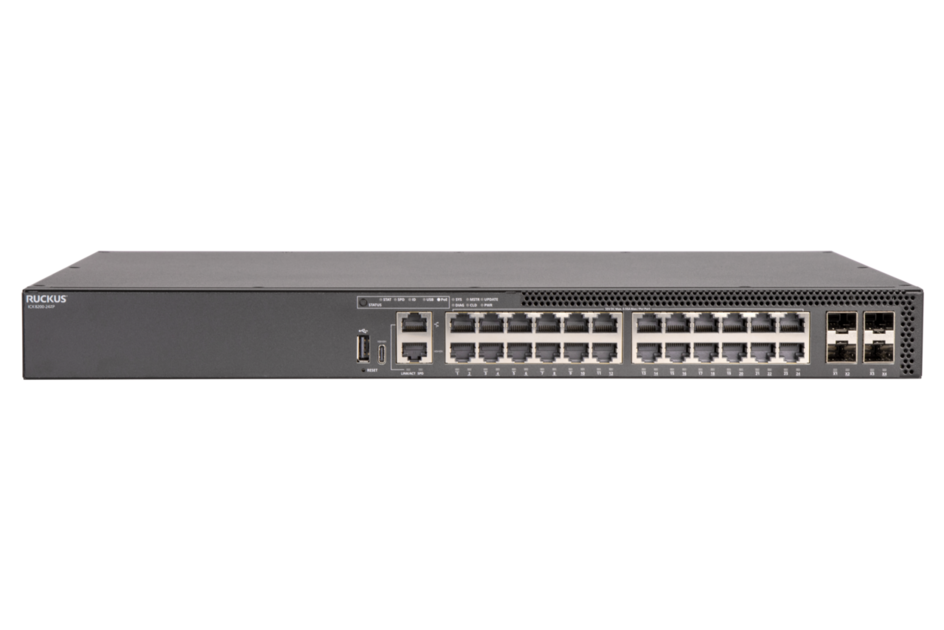

RUCKUS ICX 8200-24ZP
24-Port Multigigabit PoE Access Switch
Overview:
The RUCKUS ICX 8200-24ZP is an entry-level+ 24-port multigigabit access switch with enterprise-grade PoE capabilities. Designed for professional AV and high-density environments, it offers 1/2.5 GbE RJ45 ports and 25GbE SFP28 uplinks for high-performance networking.
With a total PoE budget of 740W, this switch can power a wide range of PoE and PoE+ devices while maintaining enterprise security, L3 routing capabilities, VXLAN support, and stackability up to 12 switches for scalable deployments.
Key Features:
- 24× 1/2.5 GbE RJ45 ports with PoE/PoE+ support
- 4× 25 GbE SFP28 uplink/stacking ports
- Maximum PoE budget: 740W
- Layer 3 support: Static, RIP, OSPF, VRF, VXLAN
- Stackable up to 12 switches, aggregate stack bandwidth 1.2 Tbps
- sFlow for traffic analytics
- Enterprise-class AV-ready with RUCKUS SmartZone, One, or Unleashed management
- Energy Efficient Ethernet (EEE) support
- Compliant with ROHS and CHINA-ROHS
Specifications:
| ICX 8200-24ZP Specifications | |
|---|---|
| Switching Capacity | 320 Gb/s |
| 1 GbE RJ45 Ports | 24 |
| 1 GbE SFP Ports | 4 |
| 10 GbE SFP+ Ports | 4 |
| 1/2.5 GbE RJ45 Ports | 24 |
| 25 GbE SFP28 Ports | 4 |
| PoE Power Budget | 740 W |
| Stacking Max | 12 switches, 1200 Gb/s aggregate |
| Layer 3 Support | Static, RIP, OSPF, VRF, VXLAN |
| PoE/PoE+ | Yes |
| Management | RUCKUS SmartZone, One, Unleashed |
| Regulatory Compliance | ROHS, CHINA-ROHS, UK-ROHS |
Documentation:
Download the RUCKUS ICX 8200-24ZP Datasheet
CommScope RUCKUS Pro AV Products
RUCKUS ICX 8200-24ZP Switch
24-Port Multigigabit PoE Access Switch
24× 1/2.5 GbE PoE ports, 4× 25GbE uplinks, 740W PoE budget, stackable, enterprise-class AV-ready, management via SmartZone, One, or Unleashed.
24× 1/2.5 GbE PoE ports, 4× 25GbE uplinks, 740W PoE budget, stackable, enterprise-class AV-ready, management via SmartZone, One, or Unleashed.
