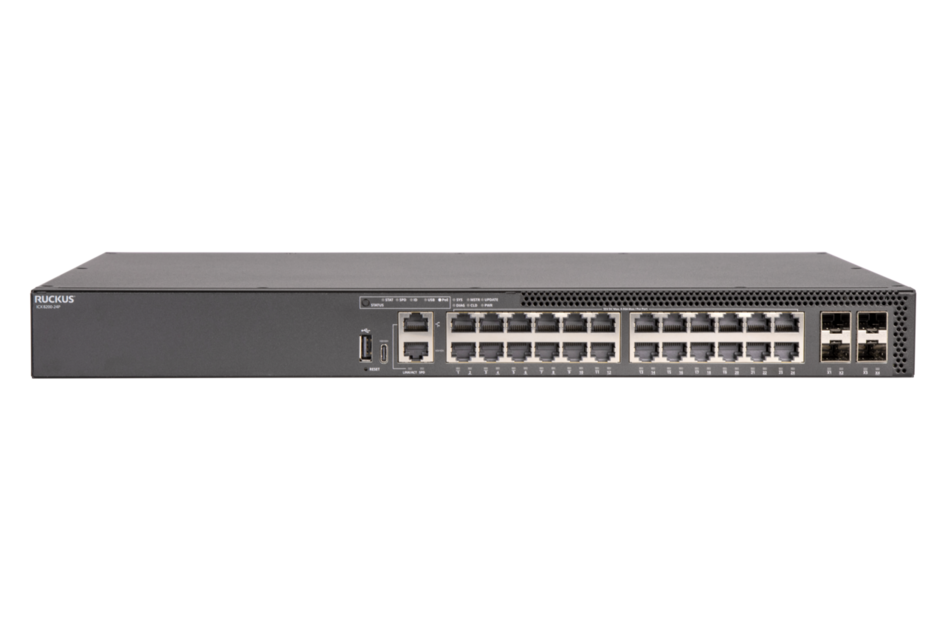

RUCKUS ICX 8200-24
Enterprise Aggregation/Core Stackable Switch
Overview:
The RUCKUS ICX 8200-24 series provides ultra-high-performance aggregation and core switching with scalable 10/25/40/100 GbE connectivity, advanced L3 routing, MACsec encryption, and flexible deployment options for modern campus and data center networks.
This series is ideal for organizations requiring top-tier performance, cloud migration support, high-density wireless/IOT environments, and robust security and management capabilities.
Premium Features:
- High-performance core/aggregation switching with up to 8.8 Tbps switching capacity
- Distributed campus core design with 10/25 GbE aggregation and 40/100 GbE uplinks
- Redundant, hot-swappable power supplies and fans
- In-Service Software Upgrades (ISSU) and Multi-Chassis Trunking (MCT)
- Advanced stacking up to 16 switches, up to 10 km distance, with QSFP28 stacking ports
- Advanced L3 routing: OSPF, BGP, VRRP, PIM, PBR, VRF
- MACsec 128/256-bit encryption for data security and compliance
- Flexible deployment: campus, data center leaf/spine, or top-of-rack
- Comprehensive management: RUCKUS SmartZone, One, Unleashed, CLI, SNMPv3, sFlow
Specifications:
| RUCKUS ICX 8200-24 Overview | |
|---|---|
| Switching Capacity | Up to 8.8 Tbps |
| Forwarding Capacity | Up to 3.0 Bpps |
| Downlink Ports | 1/10/25 GbE SFP28, 1/10 GbE SFP+, 1/10 GbE RJ45 |
| Uplink / Stacking Ports | 8x 40/100 GbE QSFP28 |
| Stacking Max | 16 switches per stack, up to 10 km |
| Redundant PSU / Fans | Yes, hot-swappable |
| Security | MACsec 128/256-bit encryption |
| Management | RUCKUS SmartZone, One, Unleashed, CLI, SNMPv3, sFlow |
| Deployment | Campus Core, Aggregation, Data Center Leaf/Spine |
ICX 8200-24 Series Model Comparison:
| Model | Switching Capacity | Forwarding Capacity | Downlink Ports | Uplink/Stacking Ports | Stacking Max | Redundant PSU/Fans |
|---|---|---|---|---|---|---|
| ICX 8250-24 | 4.8 Tbps | 1.5 Bpps | 24 x 1/10/25 GbE | 4 x 40/100 GbE | 12 switches | Yes |
| ICX 8250-48 | 6.4 Tbps | 2.0 Bpps | 48 x 1/10/25 GbE | 8 x 40/100 GbE | 16 switches | Yes |
| ICX 8270-24 | 7.2 Tbps | 2.5 Bpps | 24 x 1/10/25 GbE | 8 x 40/100 GbE | 16 switches | Yes |
| ICX 8270-48 | 8.8 Tbps | 3.0 Bpps | 48 x 1/10/25 GbE | 8 x 40/100 GbE | 16 switches | Yes |
Documentation:
Download the RUCKUS ICX 8200-24 Datasheet
CommScope RUCKUS Products
RUCKUS ICX 8200-24 Switch
Enterprise Aggregation/Core Switch
High performance, stackable, secure, and scalable campus/core switch solution.
High performance, stackable, secure, and scalable campus/core switch solution.
