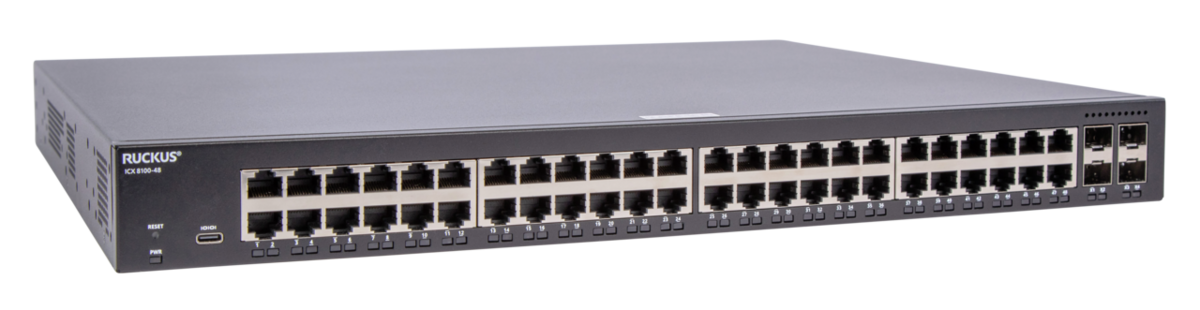

RUCKUS ICX 8100-48
48-Port Gigabit Enterprise Access Switch
Overview:
The RUCKUS ICX 8100-48 is a high-performance enterprise access switch designed to deliver reliable Gigabit connectivity with simplified deployment and management. Built for modern campus networks, hospitality environments, residential developments, and educational institutions, it provides cost-effective enterprise networking without unnecessary complexity.
With 48 Gigabit Ethernet access ports and support for four 1GbE SFP or optional 10GbE SFP+ uplinks, the ICX 8100-48 enables fast and scalable connectivity between access devices and core network infrastructure.
The switch integrates flexible management capabilities including RUCKUS One AI-driven cloud management, SmartZone controllers, CLI, and web-based interface, giving organizations the flexibility to manage networks according to their operational needs.
Its fanless design ensures silent operation, making it ideal for deployment in offices, hospitality environments, classrooms, and other noise-sensitive spaces.
Features:
- 48 × 10/100/1000 Mbps Gigabit Ethernet access ports
- 4 × 1GbE SFP uplink ports
- Optional 4 × 10GbE SFP+ uplinks (-X models)
- Switching capacity up to 176 Gb/s
- Forwarding performance up to 132 Mpps
- Fanless design for silent operation
- Energy Efficient Ethernet (IEEE 802.3az)
- Advanced Layer 2 networking features
- Supports stacking of up to 4 switches
- Enterprise-grade security including 802.1X authentication
- sFlow traffic monitoring and analytics
- Flexible management via RUCKUS One cloud, SmartZone controller, CLI, or Web GUI
- Optimized for high-density wired and wireless deployments
Specifications:
| RUCKUS ICX 8100-48 Specifications | |
|---|---|
| Switching Capacity | 176 Gb/s |
| Forwarding Capacity | 132 Mpps |
| 10/100/1000 Mbps RJ-45 Ports | 48 |
| Uplink Ports | 4 × 1GbE SFP (or optional 4 × 10GbE SFP+) |
| PoE Support | No |
| Stacking | Up to 4 switches |
| Layer 3 Routing | Not supported |
| Energy Efficient Ethernet | Yes (IEEE 802.3az) |
| sFlow Monitoring | Yes |
| Maximum MAC Addresses | 32K |
| Maximum VLANs | 4095 |
| Maximum Jumbo Frame Size | 9,216 bytes |
| Management Options | RUCKUS One, SmartZone, CLI, Web GUI |
| Console Port | USB Type-C |
| Operating Temperature | 0°C to 45°C |
| Dimensions (H × W × D) | 4.40 × 44.00 × 37.00 cm |
| Weight | 4.61 kg |
Documentation:
Download the RUCKUS ICX 8100 Series Data Sheet
Enterprise-grade Gigabit Ethernet access switch with silent fanless design, optional 10GbE uplinks, and flexible cloud or on-premises management.
