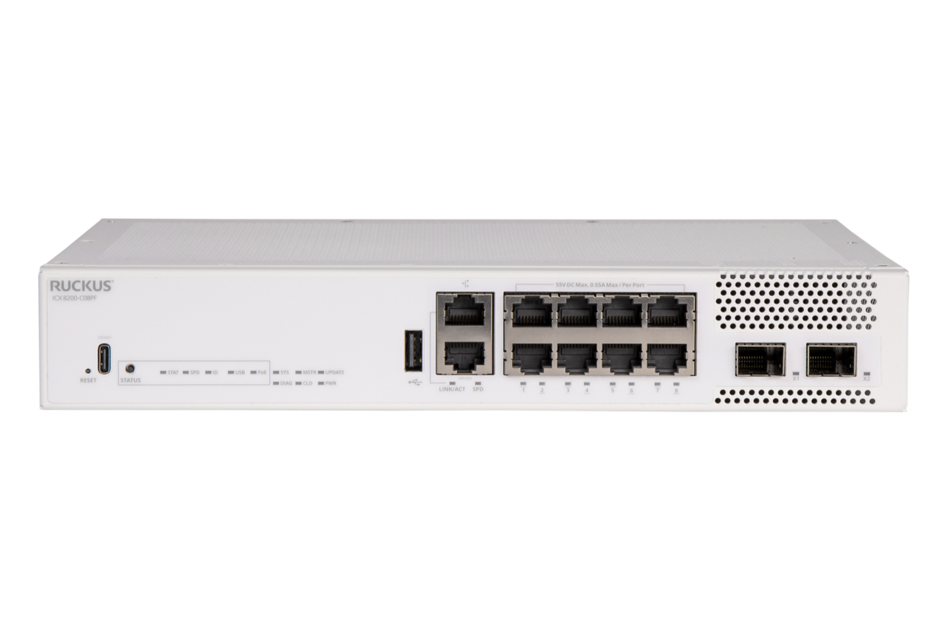

RUCKUS ICX 8200-C08PF
Compact 8-Port Gigabit PoE Access Switch
Overview:
The RUCKUS ICX 8200-C08PF is a compact enterprise-class access switch designed for small offices, branch locations, and remote deployments that require reliable switching and integrated Power over Ethernet.
It delivers 8 Gigabit Ethernet PoE ports to power devices such as wireless access points, IP phones, cameras, and IoT devices. The switch also includes 2 × 1GbE SFP ports and 2 × 10GbE SFP+ uplinks for high-speed connectivity to aggregation or core networks.
The ICX 8200-C08PF supports advanced Layer 3 routing, stacking capability, and enterprise-class network visibility, enabling organizations to deploy scalable and flexible access networks even in space-constrained environments.
With integrated management and support for modern campus network architectures, the ICX 8200-C08PF provides powerful enterprise switching in a compact form factor.
Features:
- 8 × 1GbE RJ-45 PoE access ports
- 2 × 1GbE SFP fiber ports
- 2 × 10GbE SFP+ uplink ports
- Switching capacity up to 56 Gb/s
- PoE power budget up to 124 W
- Supports stacking up to 12 switches
- Aggregate stack bandwidth up to 240 Gb/s
- Layer 3 routing support (Static, RIP, OSPF)
- VRF and VXLAN support
- sFlow traffic monitoring
- OpenFlow Hybrid Port Mode support
- Energy Efficient Ethernet (EEE)
- Compact design ideal for branch and edge deployments
Specifications:
| RUCKUS ICX 8200-C08PF Specifications | |
|---|---|
| Switching Capacity | 56 Gb/s |
| 1 GbE RJ45 Ports | 8 |
| 1 GbE SFP Ports | 2 |
| 10 GbE SFP+ Ports | 2 |
| PoE Power Budget | 124 W |
| PoE / PoE+ | Yes |
| Stacking | Yes (Up to 12 switches) |
| Aggregate Stack Bandwidth | 240 Gb/s |
| Layer 3 Routing | Static, RIP, OSPF |
| VRF | Yes |
| VXLAN | Yes |
| sFlow | Yes |
| OpenFlow Hybrid Mode | Yes |
| Redundant Power Option | No |
| Hot Swap Internal Power Supplies | No |
| Energy Efficient Ethernet | Yes |
| MACsec | No |
| BGP | No |
Documentation:
Download the RUCKUS ICX 8200 Series Data Sheet
Compact enterprise PoE switch with 10GbE uplinks, Layer 3 routing, stacking capability, and flexible deployment options for branch and edge networks.
