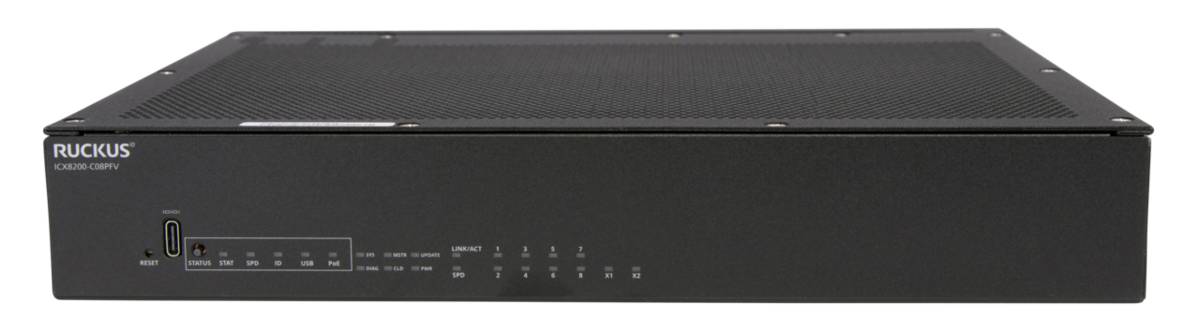

RUCKUS ICX 8200-C08PFV
Compact 8-Port Gigabit PoE AV Access Switch
Overview:
The RUCKUS ICX 8200-C08PFV is a compact enterprise-class access switch designed for AV-over-IP deployments, branch networks, and space-constrained environments requiring reliable switching and Power over Ethernet connectivity.
It features 8 Gigabit Ethernet PoE ports to power devices such as wireless access points, IP cameras, IP phones, and professional AV equipment. The switch also includes 2 × 1GbE SFP ports and 2 × 10GbE SFP+ uplinks for high-speed connectivity to aggregation switches or core networks.
The ICX 8200-C08PFV supports 25GbE stacking capability and enterprise Layer 3 routing, enabling scalable campus and AV-over-IP deployments while maintaining high performance and low latency.
With support for advanced networking technologies including VXLAN, VRF, and OpenFlow hybrid mode, the switch provides flexible integration into modern enterprise network architectures.
Features:
- 8 × 1GbE RJ-45 PoE access ports
- 2 × 1GbE SFP fiber ports
- 2 × 10GbE SFP+ uplink ports
- Supports up to 4 × 25GbE SFP28 uplink or stacking ports
- Switching capacity up to 56 Gb/s
- PoE power budget up to 124 W
- Supports stacking up to 12 switches
- Aggregate stack bandwidth up to 240 Gb/s
- Layer 3 routing support (Static, RIP, OSPF)
- sFlow network traffic monitoring
- OpenFlow Hybrid Port Mode support
- VRF and VXLAN network virtualization support
- Energy Efficient Ethernet (EEE)
- Compact design ideal for AV and branch deployments
Specifications:
| RUCKUS ICX 8200-C08PFV Specifications | |
|---|---|
| Switching Capacity | 56 Gb/s |
| 1 GbE RJ45 Ports | 8 |
| 1 GbE SFP Ports | 2 |
| 10 GbE SFP+ Ports | 2 |
| 25 GbE SFP28 Ports | 4 |
| PoE Power Budget | 124 W |
| PoE / PoE+ | Yes |
| Stacking | Yes (Up to 12 switches) |
| Aggregate Stack Bandwidth | 240 Gb/s |
| Layer 3 Routing | Static, RIP, OSPF |
| VRF | Yes |
| VXLAN | Yes |
| sFlow | Yes |
| OpenFlow Hybrid Mode | Yes |
| Redundant Power Option | No |
| Hot Swap Internal Power Supplies | No |
| Energy Efficient Ethernet | Yes |
| MACsec | No |
| BGP | No |
Documentation:
Download the RUCKUS ICX 8200 Series Data Sheet
Compact enterprise PoE switch designed for AV-over-IP and branch networks, featuring 10GbE uplinks, 25GbE stacking capability, and advanced Layer 3 networking features.
