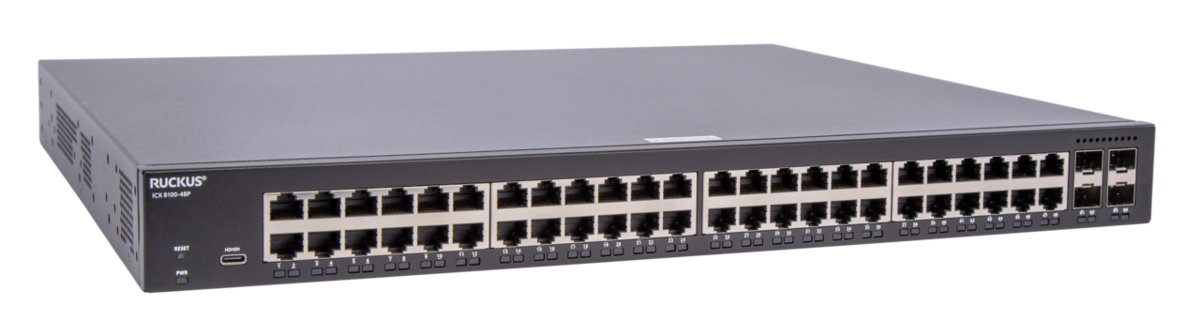

RUCKUS ICX 8100-48PF
48-Port Gigabit PoE+ Enterprise Access Switch
Overview:
The RUCKUS ICX 8100-48PF is a high-performance enterprise access switch designed to deliver reliable Gigabit connectivity with integrated PoE+ support for powering wireless access points, IP cameras, VoIP phones, and other network devices.
With 48 Gigabit Ethernet PoE+ ports, the ICX 8100-48PF provides scalable connectivity for modern enterprise and campus network environments.
The switch delivers high switching performance and supports flexible management options including RUCKUS One cloud management, SmartZone controllers, CLI, SNMP, and web-based GUI.
The ICX 8100 series is designed for organizations requiring reliable access switching for branch offices, enterprise networks, and campus deployments.
Features:
- 48 × 10/100/1000 Mbps Gigabit Ethernet PoE+ access ports
- PoE power budget up to 740 W
- Maximum 30 W per port PoE output
- Switching capacity up to 176 Gb/s
- Forwarding performance up to 132 Mpps
- Energy Efficient Ethernet (IEEE 802.3az)
- sFlow traffic monitoring
- Up to 32K MAC address table
- Support for jumbo frames up to 9,216 bytes
- Flexible management via RUCKUS One, SmartZone, CLI, SNMP, and Web GUI
Specifications:
| RUCKUS ICX 8100-48PF Specifications | |
|---|---|
| Switching Capacity | 176 Gb/s |
| Forwarding Capacity | 132 Mpps |
| 10/100/1000 Mbps RJ-45 Ports | 48 |
| PoE Support | PoE+ |
| PoE Power Budget | 740 W |
| Maximum PoE Output per Port | 30 W |
| 1 GbE SFP Ports | 4 |
| Energy Efficient Ethernet | Yes (IEEE 802.3az) |
| sFlow Monitoring | Yes |
| Maximum MAC Addresses | 32K |
| Maximum VLANs | 4095 |
| Maximum Jumbo Frame Size | 9,216 bytes |
| Management Options | RUCKUS One, SmartZone, CLI, Web GUI |
| Operating Temperature | 0°C to 45°C |
Documentation:
Download the RUCKUS ICX 8100 Series Data Sheet
Enterprise-grade Gigabit Ethernet PoE+ switch designed for branch, campus, and enterprise network deployments with reliable Layer 2 switching performance.
Request a Quote
