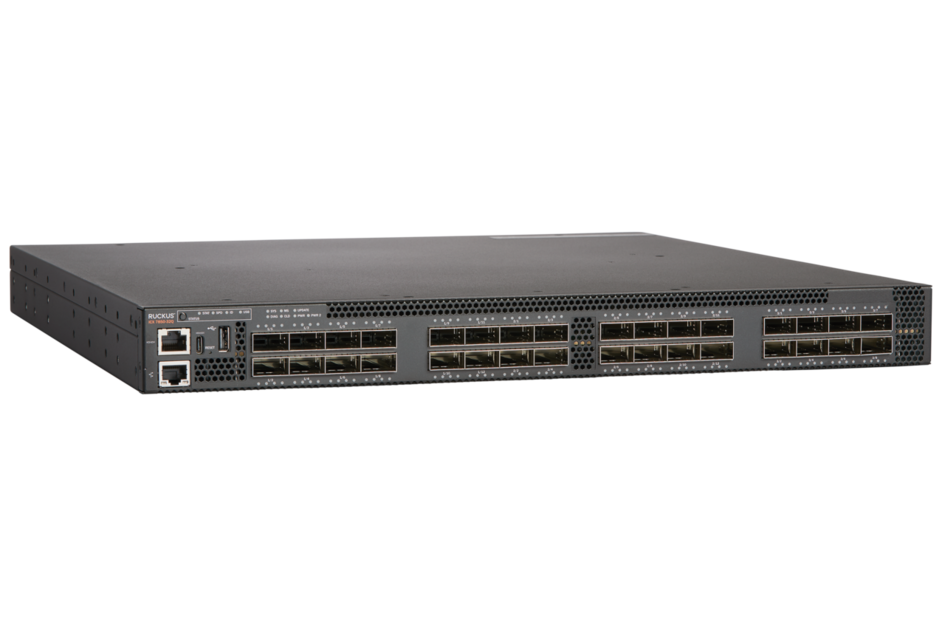

RUCKUS ICX 7850
Enterprise Aggregation/Core Stackable Switch
Overview:
The RUCKUS ICX 7850 is a high-performance enterprise aggregation/core switch designed to meet the demands of modern campus and data center networks. With up to 6.4 Tbps switching capacity, advanced L3 routing, MACsec encryption, and highly resilient hardware, it provides flexibility, scalability, and reliability for future-proof networks.
This switch family supports 10/25 GbE aggregation, 40/100 GbE core, and top-of-rack deployment scenarios. It is ideal for organizations migrating applications to the cloud, supporting high volumes of wireless, IoT, and LTE traffic, and requiring robust security and management features.
Premium Features:
- High-performance core/aggregation switching with up to 6.4 Tbps switching capacity
- Distributed campus core design with 10/25 GbE aggregation and 40/100 GbE uplinks
- Redundant, hot-swappable power supplies and fans
- In-Service Software Upgrades (ISSU) and Multi-Chassis Trunking (MCT)
- Advanced stacking up to 12 switches, up to 10 km distance, with up to 8 QSFP28 stacking ports
- Advanced L3 routing protocols including OSPF, BGP, VRRP, PIM, PBR, and VRF
- MACsec 128/256-bit encryption for data security and compliance
- Flexible deployment: campus, data center leaf/spine, or top-of-rack
- Comprehensive management: RUCKUS SmartZone, RUCKUS One, RUCKUS Unleashed, CLI, SNMPv3, and sFlow
Specifications:
| RUCKUS ICX 7850 Overview | |
|---|---|
| Switching Capacity | Up to 6.4 Tbps |
| Forwarding Capacity | Up to 2.0 Bpps |
| Downlink Ports | 1/10/25 GbE SFP28, 1/10 GbE SFP+, 1/10 GbE RJ45 |
| Uplink / Stacking Ports | 8x 40/100 GbE QSFP28 |
| Stacking Max | 12 switches per stack, up to 10 km |
| Redundant PSU / Fans | Yes, hot-swappable |
| Security | MACsec 128/256-bit encryption |
| Management | RUCKUS SmartZone, One, Unleashed, CLI, SNMPv3, sFlow |
| Deployment | Campus Core, Aggregation, Data Center Leaf/Spine |
Documentation:
Download the RUCKUS ICX 7850 Datasheet
