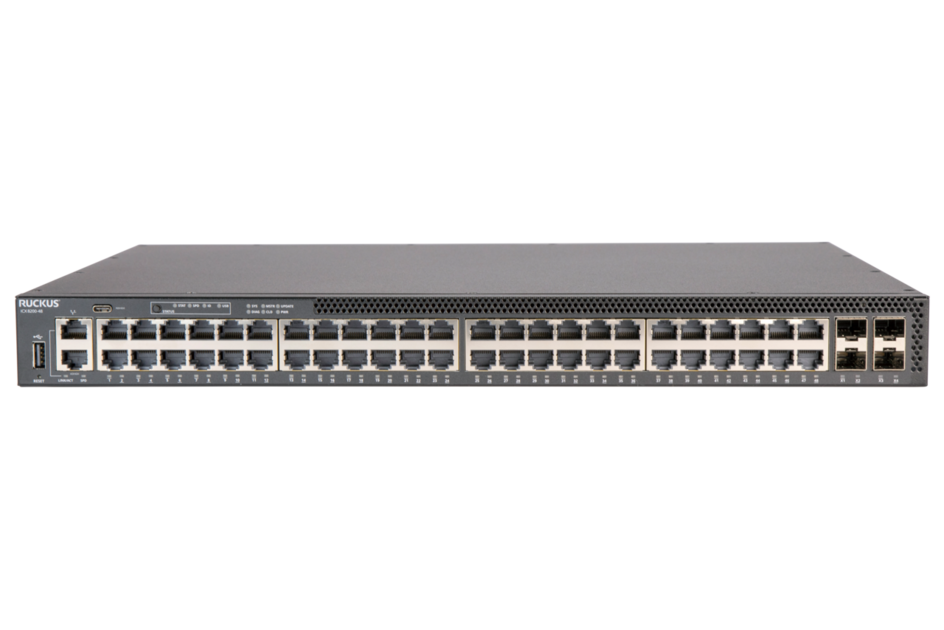

RUCKUS ICX 8200-48
48-Port 1G Entry-Level+ Access Switch
Overview:
The RUCKUS ICX 8200-48 is a high-performance entry-level enterprise access switch designed for campus and enterprise network deployments. With 48 Gigabit Ethernet ports and high-speed 25GbE uplinks, the switch provides reliable connectivity for modern network environments.
Built on the proven RUCKUS ICX platform, the ICX 8200-48 supports advanced Layer 3 routing capabilities, network segmentation with VXLAN, and high-capacity stacking for scalable network expansion.
The switch integrates seamlessly with RUCKUS management platforms including RUCKUS One, SmartZone, and Unleashed, delivering simplified network management and enterprise-class reliability.
Key Features:
- 48× 1GbE RJ-45 access ports
- 4× 1GbE SFP uplink ports
- 4× 10GbE SFP+ uplink ports
- 4× 25GbE SFP28 high-speed uplink/stacking ports
- Switching capacity up to 296 Gb/s
- Stack up to 12 switches with up to 1.2 Tbps stack bandwidth
- Advanced Layer 3 routing including Static, RIP, and OSPF
- VXLAN support for advanced network segmentation
- sFlow traffic monitoring and analytics
- Energy Efficient Ethernet (EEE) support
- Managed through RUCKUS SmartZone, RUCKUS One, or Unleashed
Specifications:
| RUCKUS ICX 8200-48 Specifications | |
|---|---|
| Switching Capacity | 296 Gb/s |
| 1GbE RJ45 Ports | 48 |
| 1GbE SFP Ports | 4 |
| 10GbE SFP+ Ports | 4 |
| 25GbE SFP28 Ports | 4 |
| PoE Support | No |
| Stacking | Yes (up to 12 switches) |
| Aggregate Stack Bandwidth | 1200 Gb/s |
| Layer 3 Routing | Static, RIP, OSPF |
| Network Segmentation | VXLAN, VRF |
| Traffic Monitoring | sFlow |
| Energy Efficient Ethernet | Yes |
| Regulatory Compliance | ROHS, UK-ROHS, CHINA-ROHS |
Documentation:
Download the RUCKUS ICX 8200 Series Data Sheet
RUCKUS ICX 8200 Series Switch
RUCKUS ICX 8200-48
48-Port Gigabit Access Switch
48× 1GbE access ports, high-speed 25GbE uplinks, enterprise Layer 3 routing, stackable architecture, and advanced network segmentation for enterprise deployments.
48× 1GbE access ports, high-speed 25GbE uplinks, enterprise Layer 3 routing, stackable architecture, and advanced network segmentation for enterprise deployments.
