| Managed APs |
                  Up to 2,000 per controllerUp to 6,000 per cluster |

              | Managed Switches |
                  Up to 400 per controllerUp to 1200 per cluster |

              | WLANs (BSSIDs) |  |

              | VLANS |  |

              | Concurrent Devices |
                  Up to 40,000 per controllerUp to 120,000 per cluster |


              | Device Management |
                  RUCKUS Wi-Fi APs supported: R850, R750, R730, R720, R710, R650, R610, R550, R510, R320, R310, M510, H510, C110, H320, E510, T811CM, T750, T750SE, T710, T710S, T610, T610S, T504, T310, T301, FZM300, FZP300RUCKUS ICX 700 series switches running FastIron 8.0.80 and above supported; FastIron 80.0.90a required for Zero-Touch Provisioning |

              | Device Type Support |  |

              | Controller Expansion |
                  Up to 4 controllers in N+1 active-active mode, supporting non-disruptive capacity expansion |

              | Controller Redundancy |
                  3+1 distributed data preserving with N+1 redundancy within a cluster |

              | Data Offload |
                  Local offload of traffic directly to the Internet |

              | AP |
                  WPA, WPA2-AES, 802.11i, 802.1x/EAP, PSK, WISPr, WEP, WPA3, Enhanced Open, MAC Address*Fast EAP-SIM re-authenticationEAP-SIM, EAP-AKA, EAP-AKA over WLAN for 802.1xWi-Fi Locations with the SZ AAA-Proxy functionality enabled |

              | User Database |
                  Internal database up to 25,000 usersExternal: RADIUS, LDAP, Active Directory |

              | Access Control |
                  L2 (MAC address-based) L3/4 (IP and Protocol based)L2 client isolationManagement interface access controlTime-based WLANsDevice type access policiesTwo-factor authentication password, SMS |

              | Wireless Intrusion Detection (WIDS/WIPS) |
                  Rogue AP detection / preventionEvil-twin/AP spoofing detection |

              | AAA |
                  RADIUS (primary and backup) |

              | Hotspot |
                  WISPr, Wi-Fi CERTIFIED, Passpoint™, HotSpot 2.0* |

              | Guest Access |  |

              | Captive Portal |  |

              | Mesh |
                  Self-healing, Self-forming, Zero-touch provisioning |

              | Media |
                  802.11e/WMM, U-APSD, Wi-Fi Calling Prioritization* |

              | mDNS Bonjour Fencing |  |

              | WISPr |
                  WISPr authentication, SZ downlink AP Survivability* |

              | Software Queues |
                  Per traffic type (4), per client |

              | SmartCast Traffic Classification |
                  Automatic, heuristics and TOS based or VLAN-defined |

              | Rate Limiting |  |

              | WLAN Prioritization |  |

              | Client Load Balancing |  |

              | Band Load Balancing |  |

              | AP Provisioning |
                  L3 or L2 auto-discoveryAuto-software upgradeAutomatic channel optimization |

              | Configuration Management |
                  Secure multi-operator login (RBAC)Large scale (bulk) AP management toolsSwitch software and firmware upgradesSwitch configuration managementPer zone firmware versioning controlConfiguration audit trailsAlarm and event notification (SNMP V1/V2/V3)Event Logging (Syslog)Integrated on-board remote accessible EMS
                    functionalityRESTful APIs (JSON)Web-UICLI |


              | Power |
                  (FRU Option) AC hot-swappable power supplyAC power consumption: 135WPower Rating: 100-127VAC/200-240VAC, 47-63HZ |

              | Dimensions |
                  1RU rack mountable: 435 mm (W) x 522 mm (D) x 44 mm (H); 17.13 in (W) x 20.55 in (D) x
                    1.73 in (H) |

              | Weight |  |

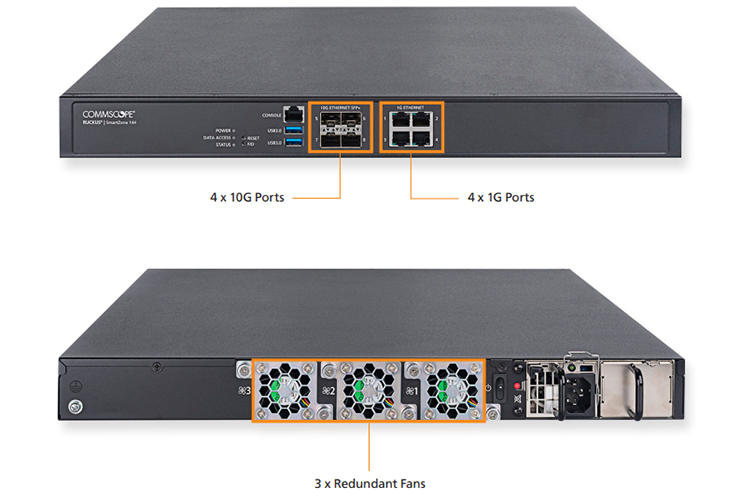

              | Connections |
                  4 - 1GbE ports4 - 10GbE ports |

              | LED |
                  Front panel LEDs, one rear LED |

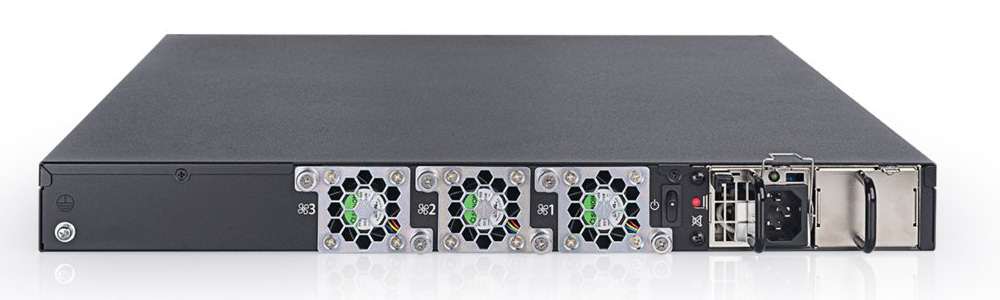

              | Fans |
                  Three (Field-Swappable fans FRU 902-S120-0000) |

              | Mean-Time-Between-Failure (MTBF) |
                  At 25C: 167,007 hoursWith 2x fans and 1x AC power supply unit |

              | Environmental Conditions |
                  Operating Temperature: 0°C (32°F) - 40°C (104°F)Operating Humidity: 5% to 95%, noncondensingHumidity storage: 95%, non-condensing |


              | USA/Canada - FCC + IC, NRTL |
                  FCC Part 15B Class A, ICES-003 Class A, UL/CSA 62368-1 |


              | USA/Canada - NRTL |  |
