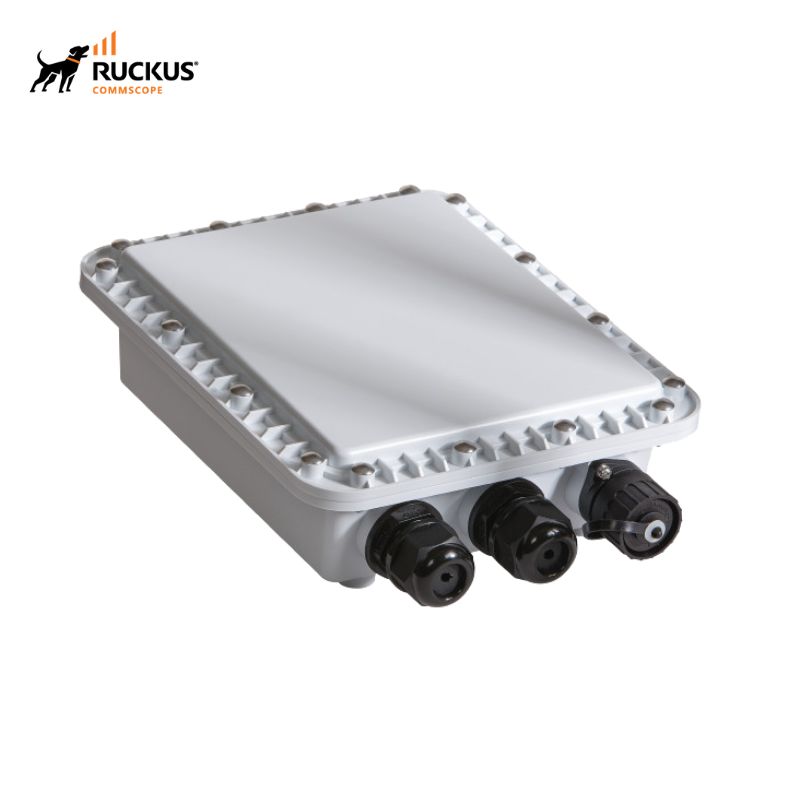

RUCKUS Fiber Node
Fiber Optic Gateway for Mesh Wi-Fi Networks
Overview
The RUCKUS Fiber Node is an optional, field-installable accessory that provides customers a unified Point-Of-Presence (POP) and fiber Optical Network Terminal (ONT) backhaul interface for the P300 Point-to-Point Bridge and the T300, T300e, T301s, T310c, T310d and T301n outdoor access points.
The Fiber Node converts 10/100/1000 Mbps Ethernet from the AP to fiber via an SFP cage, and also acts as a VAC-to-PoE power injector for the attached access point — eliminating the need for separate power infrastructure in outdoor deployments.
Designed for fibre-ready outdoor environments, the Fiber Node ships with a mounting bracket that allows the AP to be mounted on one side with the Fiber Node on the other, keeping the installation clean and unified. The enclosure is rated IP67 for full weather protection, with an operating temperature range of −20°C to 65°C.
Supported SFP optics include EPON/DPoE (20 km reach, 9/125 µm SMF) and 1000Base-LX (10 km reach, 9/125 µm SMF), giving deployment teams the flexibility to match any carrier or campus fibre infrastructure.
Features
- Provides fiber backhaul option for the RUCKUS T30x / T310c/d / P300 families of outdoor APs and bridges
- Converts 10/100/1000 Mbps Ethernet from the AP to fiber via an SFP cage
- Converts VAC to PoE to power the attached access point (48 VDC, 24 W output)
- Field-installable on existing equipment — no tools required
- Ships with a bracket for clean co-mounted AP + Fiber Node installation
- IP67 weather protection per IEC 60529
- Operating temperature range: −20°C to 65°C
- Supports EPON/DPoE SFP — 20 km reach, CTC OAM, DPoE, IEEE 802.3ah-2005
- Supports 1000Base-LX SFP — 10 km reach, IEEE 802.3ah-2005, TS-1000 compliance
- SNMP V1/V2C management with 4 RMON groups and SNMP traps (1000Base-LX mode)
- Built-in digital diagnostics
- Class 1 Laser Product — certified to EN/IEC 60825 eye safety requirements
- RoHS compliant hazardous materials
Specifications
| Physical Characteristics | |
|---|---|
| Physical Size | 20.7 × 17.6 × 6.8 cm |
| Weight | 6 lbs (with mounting hardware) |
| Ethernet Port | 1 × 1 Gbps |
| Mounting | Ships with bracket — AP mounts on one side, Fiber Node on the other |
| Power | |
| AC Input | 90 – 240 VAC |
| PoE Output | 48 VDC, 24 W |
| Environmental | |
| Operating Temperature | −20°C to 65°C |
| Weather Protection | IP67 per IEC 60529 |
| EPON Optical Specifications | |
| Reach | EPON/DPoE 20 km — 9/125 µm SMF, SC/UPC |
| SFP Footprint | EPON ONU in MSA SFP footprint |
| Receptacle | Single fiber bi-directional SC receptacle |
| Tx Power | 1310 µm — −1 dBm (min) to +4 dBm (max) |
| Rx Sensitivity | 1500 µm — −27 dBm (min) |
| Compatibility | Compatible with EPON OLTs and CPE equipment |
| EPON Standard | Meets China Telecom EPON Equipment Technical Requirement V2.1 |
| 1000Base-LX Optical Specifications | |
| Reach | 1000Base-LX 10 km — 9/125 µm SMF, LC-Duplex |
| Receptacle | Dual fiber unidirectional LC-Duplex receptacle |
| Tx Power | 1310 µm — 0 to −3 dBm |
| Rx Sensitivity | 1310 µm — −19 dBm max |
| Management & Standards | |
| EPON Management | CTC OAM, DPoE · IEEE 802.3ah-2005 · Built-in digital diagnostics |
| 1000Base-LX Management | IEEE 802.3ah-2005 · TS-1000 · IP-based remote management · SNMP V1/V2C (4 RMON groups + traps) |
| Certifications | |
| Safety | UL 60950-1 · UL 60950-22 · CAN/CSA C22.2 60950-1 · EN 60950-1 · EN 60950-22 · IEC 60950-1 · IEC 60950-22 |
| Laser Safety | Class 1 — EN/IEC 60825 · US FDA certified by TÜV and CSA |
| RF Exposure | EN 62311 |
| Emissions | FCC Part 15 B (Class B) · ICES-003 (Class B) · EN 55022 (Class B) |
| Immunity | EN 55024 |
| Hazardous Materials | RoHS |
| Recycle Design | WEEE |
Documentation
Download the RUCKUS Fiber Node Data Sheet
Field-installable fiber ONT backhaul accessory for T300 / T301 / T310 series and P300. Converts VAC to PoE. Supports EPON/DPoE and 1000Base-LX SFP optics.
