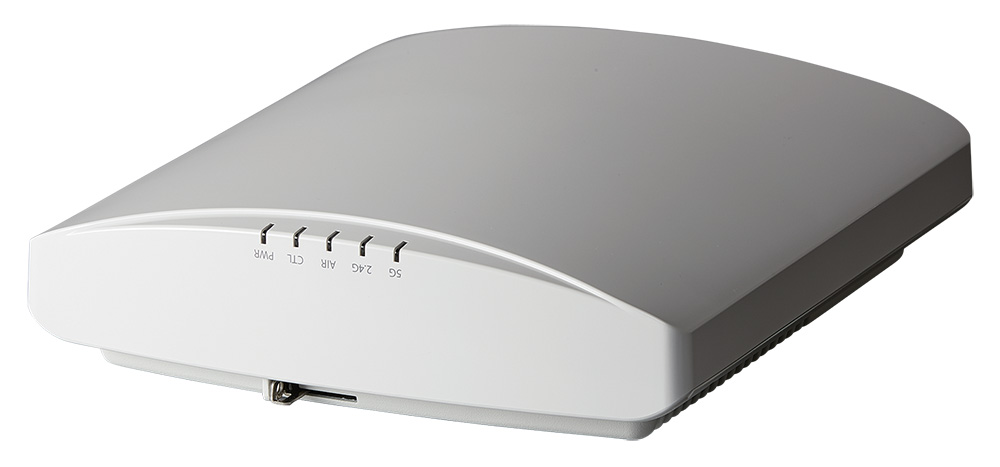

RUCKUS ZoneFlex R730
Indoor 802.11ax 8x8:8 Wi-Fi Access Point with Multi-gigabit backhaul

Features:

Connect More Devices Simultaneously

• Improve device performance, by enabling more simultaneous device connections with built-in 12 spatial streams (8x8:8 in 5GHz, 4x4:4 in 2.4GHz), MU-MIMO and OFDMA technology.

Ultra-High-Density Performance

• Provides exceptional end-user experience within stadiums, large public venues, convention centers and school auditoriums with the RUCKUS Ultra-High-Density Technology Suite.

Enhanced Security

• Upgrade to the latest Wi-Fi security standard with WPA3 and receive enhanced protection from man-in-the-middle attacks in the most secure way.

Multi-Gigabit Access Speeds

• Optimized multi-gigabit Wi-Fi performance delivered using built-in 5GbE/2.5GbE Ethernet ports to connect to multi-gigabit switches.

Better Mesh Networking

• Minimize complexity by reducing expensive cabling with SmartMesh™ that dynamically creates self-forming, self-healing mesh networks.

Automate Optimal Throughput

• ChannelFly™ dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.

More Than Wi-Fi

• Support services beyond Wi-Fi with RUCKUS IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locating engine, and SCI network analytics.

Specifications:

	R750	R730	R720	R710
	Learn More	Learn More	Learn More	Learn More
Feature/Description	High-end 802.11ax 4x4 dual concurrent AP with MU-MIMO, BeamFlex+ and 2.5Gbps backhaul	High-end 802.11ax 8x8 dual concurrent AP with MU-MIMO, BeamFlex+ and 5Gbps backhaul	High-end 802.11ac Wave 2 dual- concurrent AP with MU-MIMO BeamFlex+ and 2.5Gbps backhaul	High-end 802.11ac Wave 2 dual- concurrent AP with MU-MIMO and BeamFlex+
Maximum PHY rate	2400 Mbps (5GHz) 1148 Mbps (2.4GHz)	4800 Mbps (5GHz) 1148 Mbps (2.4GHz)	1733  Mbps (5GHz) 600  Mbps (2.4GHz)	1733  Mbps (5GHz) 600  Mbps (2.4GHz)
Wi-Fi technology	802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™	802.11ax (2.4 GHz, 5GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)
Concurrent users	1024	1024	512	512
Radio chains:streams	4x4:4	8x8:8	4x4:4	4x4:4 SU-MIMO 4x4:3 MU-MIMO
Antenna patterns (per band)	4,000+	4,000+	4,000+	4,000+
Antenna gain	Up to 3dbi	Up to 2dBi	Up to 3dBi	Up to 3dBi
PD-MRC
Rx sensitivity (2.4/5GHz)	-102dBm	-103/-101dBm	-104dBm	-104dBm
ChannelFly
SmartMesh
USB (IoT Ready)
Ethernet ports	1x1GbE 1x2.5GbE	1x 1/2.5/5 Gbps 1x 10/100/1000 Mbps	1 x 1GbE and 1 x 2.5GbE	2 x 1GbE
Integrated BLE/ZigBee			-	-
WLAN Control and Management	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud

Views:

Comparison:

Model:	C110	H320	H500	H510	H550	M510	R300	R310	R320	R350	R500	R510	R550	R600	R610	R650	R700	R710	R720	R750	R730	R850
Description	802.11ac Wave 2 dual-concurrent wall plate with built-in DOCSIS 3.0 cable modem	802.11ac Wave 2 dual-concurrent wall switch with two 10/100MbE ports and BeamFlex+	802.11ac Wave 1 dual-concurrent wall plate with five GbE ports and BeamFlex+	802.11ac Wave 2 dual-concurrent wall switch with five GbE ports and BeamFlex+	Wall-mount Wi-Fi 6 (802.11ax) AP dual-concurrent, five GbE ports, IoT gateway, BeamFlex+	Mobile Indoor 802.11ac Wave 2 2x2:2 Wi-Fi AP with LTE Backhaul	Entry level 802.11n dual-concurrent AP with BeamFlex	Entry level 802.11ac Wave 1 dual-concurrent AP with BeamFlex	Entry level 802.11ac Wave 2 dual-concurrent AP with BeamFlex	Entry level Indoor 802.11ax Wi-Fi 6 dual-concurrent AP with BeamFlex	Mid-range 802.11ac Wave 1 dual-concurrent AP with BeamFlex+	Mid-range 802.11ac Wave 2 dual-concurrent AP with MU-MIMO and BeamFlex+	Mid-range Wi-Fi 6 (802.11ax) dual-concurrent AP with MU-MIMO and BeamFlex+	Mid-range 802.11ac Wave 1 dual-concurrent AP with BeamFlex+	Mid-range 802.11ac Wave 2 dual-concurrent AP with MU-MIMO and BeamFlex+	Mid-range Wi-Fi 6 (802.11ax) dualconcurrent AP with MU-MIMO and BeamFlex+	High-end 802.11ac Wave 1 dual-concurrent AP with BeamFlex+	High-end 802.11ac Wave 2 dualconcurrent AP with MU-MIMO and BeamFlex+	High-end 802.11ac Wave 2 dual-concurrent AP with MU-MIMO, BeamFlex+ and 2.5Gbps backhaul	High-end 802.11ax 4x4 dual concurrent AP with MU-MIMO, BeamFlex+ and 2.5Gbps backhaul	High-end 802.11ax 8x8 dual-concurrent AP with MU-MIMO, BeamFlex+ and 5Gbps backhaul	High-end 802.11ax 8x8 dual-concurrent AP with MU-MIMO, BeamFlex+ and 5Gbps backhaul
Maximum PHY rate	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 150 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	1200 Mbps (5GHz) 574 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	300 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	1200 Mbps (5GHz) 574 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	1200 Mbps (5GHz) 574 Mbps (2.4GHz)	1300 Mbps (5GHz) 450 Mbps (2.4GHz)	1300 Mbps (5GHz) 450 Mbps (2.4GHz)	2400 Mbps (5GHz) 574 Mbps (2.4GHz)	1300 Mbps (5GHz) 450 Mbps (2.4GHz)	1733 Mbps (5GHz) 600 Mbps (2.4GHz)	1733 Mbps (5GHz) 600 Mbps (2.4GHz)	2400 Mbps (5GHz) 1148 Mbps (2.4GHz)	4800 Mbps (5GHz) 1148 Mbps (2.4GHz)	4800 Mbps (5GHz) 1148 Mbps (2.4GHz)
Wi-Fi technology	802.11ac (5GHz) 802.11n (2.4 GHz)	802.11ac (5GHz) 802.11n (2.4 GHz)	802.11ac (5GHz) 802.11n (2.4 GHz)	802.11ac (5GHz) 802.11n (2.4 GHz)	802.11ax (2.4 GHz, 5 GHz) Wi-Fi Certified 6™	802.11ac (5 GHz) 802.11n (2.4 GHz)	802.11n (2.4/5 GHz)	802.11ac (5 GHz) 802.11n (2.4 GHz)	802.11ac (5 GHz) 802.11n (2.4 GHz)	802.11ax (2.4 GHz, 5 GHz) Wi-Fi Certified 6™	802.11ac (5 GHz) 802.11n (2.4 GHz)	802.11ac (5 GHz) 802.11n (2.4 GHz)	802.11ax (2.4 GHz, 5 GHz) Wi-Fi Certified 6™	802.11ac (5 GHz) 802.11n (2.4 GHz)	802.11ac (5 GHz) 802.11n (2.4 GHz)	802.11ax (2.4 GHz, 5 GHz) Wi-Fi Certified 6™	802.11ac (5 GHz) 802.11n (2.4 GHz)	802.11ac (5 GHz) 802.11n (2.4 GHz)	802.11ac (5 GHz) 802.11n (2.4 GHz)	802.11ax (2.4 GHz, 5 GHz) Wi-Fi Certified 6™	802.11ax (2.4 GHz, 5 GHz)	802.11ax (2.4 GHz, 5 GHz) Wi-Fi Certified 6™
Concurrent users	100	100	100	100	512	512	256	100	256	256	512	512	512	512	512	512	512	512	512	1024	1024	1024
Radio chains:streams	2x2:2	5GHz: 2x2:2 MU MIMO 2.4GHz: 1x1:1 SU-MIMO	2x2:2	2x2:2	2x2:2	2x2:2	2x2:2	2x2:2	2x2:2	2x2:2	2x2:2	2x2:2	2x2:2	3x3:3	3x3:3	5GHz: 4x4:4 MU MIMO 2.4GHz: 2x2:2 MU-MIMO	3x3:3	4x4:4 SU-MIMO 4x4:3 MU-MIMO	4x4:4	4x4:4	8x8:8	5GHz: 8x8:8 MU MIMO 2.4GHz: 4x4:4 MU-MIMO
Antenna patterns (per band)	4	4	8	4	16	64	64	64	64	64	64	64	64	512	512	512	3000+	4000+	4000+	4000+	4000+	4000+
Antenna gain	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 1dBi	Up to 1dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 4dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 4dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 2dBi	Up to 2dBi
PD-MRC							—	—	—
Rx sensitivity (2.4/5GHz)	-96/-95 dBm	-99/-96 dBm	-96/-95 dBm	-99/-96 dBm	-100 dBm	-101/-95 dBm	-101/-97 dBm	-99 dBm	-101 dBm	-101 dBm	-100/-95 dBm	-103 dBm	-103 dBm	-100/-95 dBm	-100 dBm	-101 dBm	-99 dBm	-104 dBm	-104 dBm	-102 dBm	-103/-101 dBm	-101 dBm
ChannelFly
SmartMesh		—				(in future release)	—	—	—
USB (IoT Ready)		—					—	—	—	—	—			—			—
Ethernet ports	2 x 10/100MbE	2 x 10/100MbE 1 x 1GbE	5 x 10/100MbE	5 x 1GbE	5 x 1GbE	2 x 1GbE, RJ-45	1 x 1GbE	1 x 1GbE	1 x 1GbE	1 x 1GbE	2 x 1GbE	2 x 1GbE	2 x 1GbE	2 x 1GbE	2 x 1GbE	1 x 1GbE 1 x 2.5GbE	2 x 1GbE	2 x 1GbE	1 x 1GbE and 1 x 2.5GbE	1 x 1GbE and 1 x 2.5GbE	1 x 1/2.5/5GbE and 1 x 1GbE	1 x 1/2.5/5GbE and 1 x 1GbE
Integrated BLE/ZigBee	—	—	—	—		—	—	—	—	—	—	—		—	—		—
Unleashed Management			—				—										—				—
Cloud Wi-Fi Management	—		—				—
ZoneDirector Management						—
SmartZone Management

Documentation:

Download the RUCKUS ZoneFlex R730 Datasheet (PDF).
